High Power Classic 500-2000 meter Anti Drone Defense System UAV Killer Signal Jammer
TXtelsig is an expert of signal jamming system and wireless coverage product.
TX-Q-02 With sighting telescope, this high power jammer can easily get rid of high-altitude UAV
threat by interfering its signal with remote control.
It can force the UAV return or descend very fast in 3-5 second.
Product Feature

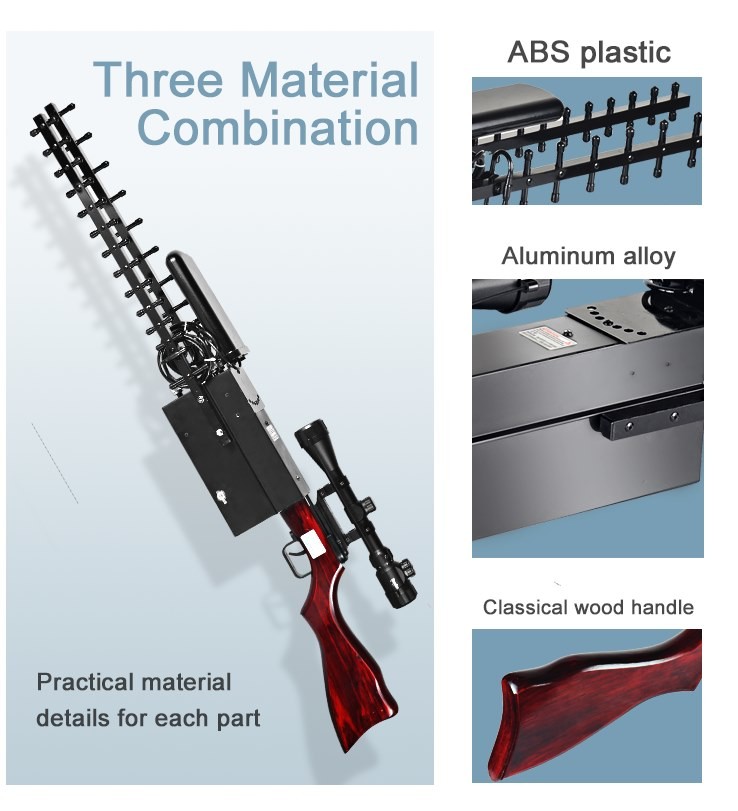

1. Classic wooden holder; The shape is easy to carry conforming to hand shape
2. Heat-dissipation Aluminum Alloy Body for long hours&stable working
3. Wide blocking range up to 500-1500 meter(Maxium up to 2000meter)
4. High-power jamming tech breaks signal very fast in 3-5 second to get rid of air threat right away
5. Built-in lithium battery can lasts 1.5 hour for outdoor operation
How to Use
| Switch | 1.5G | 2.4G | 5.8G | Function | UAV Status |
| Action |
| Press | √ | | | cut off GPS signal of UAV and remote controller | return home |
| Press | | √ | √ | make the remote control fail work and stop UAV image transmission | UAV can not be operated by remote controller and not able to transmit images to it |
| Press | √ | √ | √ | GPS, image transmission and remote control all can not work | hover and slowly descend in 3-5 second |
--We can customize the frequency band as required such as 433Mhz, 900Mhz, 1.2Ghz, etc.
--Capacity Display Screen:
1. GREEN light shows remaining capacity
2. RED light shows not-enough capacity
Specification
| TX Model No. | TX-Q-02 |
| Size | 1100*280*100mm |
| Weight | 5.1KG |
| Jamming Frequency | 1.5GHz (GPS) |
| (can be customized) | 2.4Ghz |
| | 5.8GHz |
| Large Jamming Range | 500-1500 Meter(Max. 2000meter) |
| Power supply | AC220V-DC5V |
| Use Time | 1-1.5hour (Built-In Battery) |
| Work Temperature | -22℃ to +70℃ |
| Work Humidity | 35% to 88% |
| Power Consumption | 157W |
| Output Power/dBm | 25W or 60W |

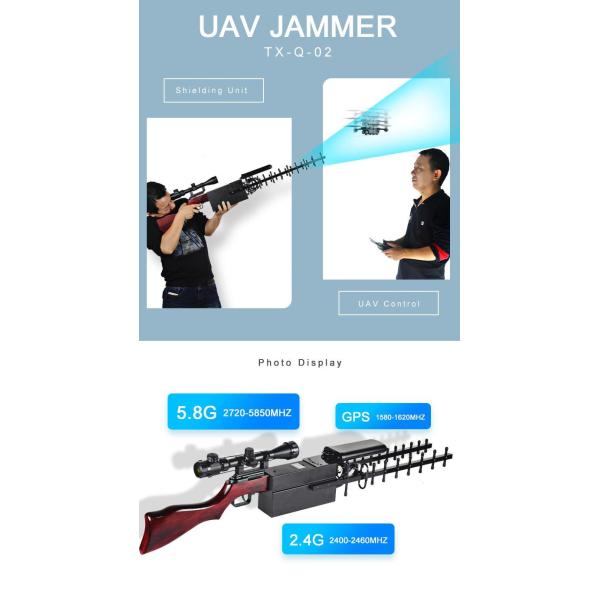

Jamming Frequency Details
| Band | Frequency | Output Power |
| 1.5G(GPS) | 1580-1620 MHZ | 10W |
| 2.4G | 2400-2460MHZ | 10W |
| 5.8G | 5720-5850 MHZ | 5W |
Application
Various applications of UAV is a serious threat to our society, especially below fields:
1. Law enforcement
2. Government
3. Military
4. Infrastructure like oil spot
5. Transportation
6. Commercial Confidential files
7. Education
8. Important Public Events
9. Personal Privay or Others
Package
| 1PCS | Drone Jammer |
| 1PCS | AC adapter |
| 1PCS | User Manual |
| 1PCS | Durable Metal Alloy Case |
After-Sales Service
The technical support will be free for lifetime and product guarantee for one year.
Product Tags:
|
|
500 - 2000 Meter Drone Frequency Scrambler , UAV Killer 2.4 Ghz Frequency Jammer Images
|
